SSA IR: The 'Lingua Franca' of LuaJIT's Compiler
A Lua function passes through five stages inside LuaJIT: bytecode → IR → optimized IR → machine code → execution. The IR (Intermediate Representation) is the hub that connects them all. The recorder writes IR. The optimizer transforms IR. The assembler reads IR. Every compiler pass speaks the same language.

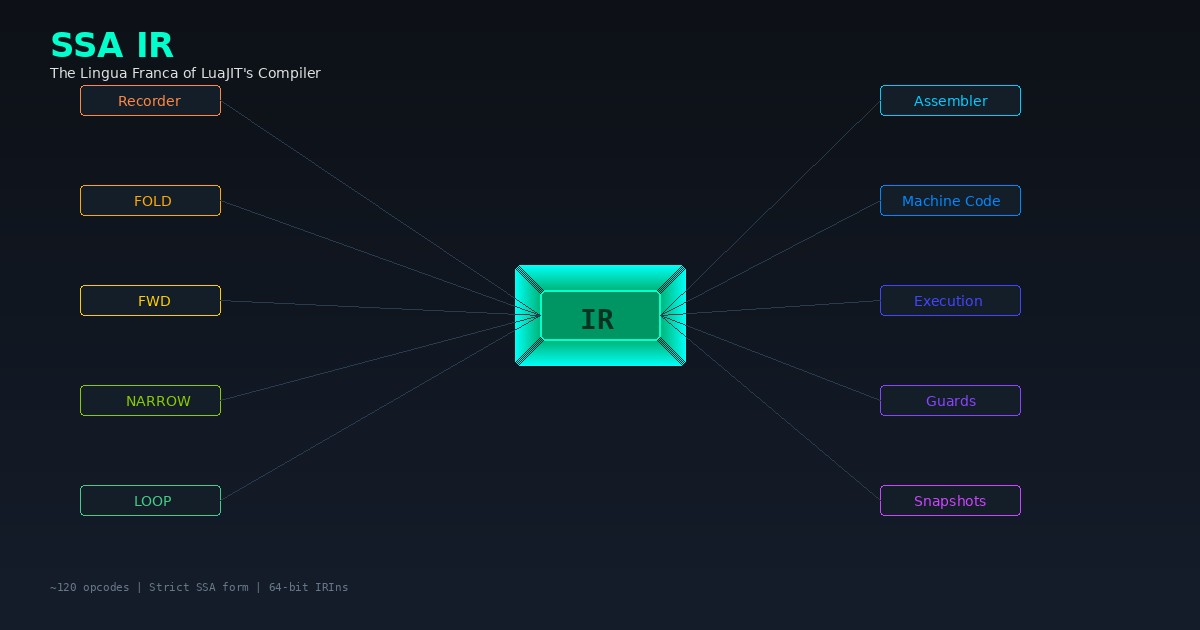

This is why IR is LuaJIT's "lingua franca" — the common tongue that makes the compiler's modular design possible. Understanding IR means understanding how LuaJIT's compiler works at its core.
In this article, you'll learn the IRIns structure, the ~120 opcodes, the type system, the SSA properties, the reference system, and how each optimization pass transforms IR before the assembler turns it into machine code.
Key Takeaways
- LuaJIT's IR is in strict SSA form: each value is defined exactly once, enabling powerful optimizations.
- The IRIns structure is a 64-bit union: operands, type, opcode, and (after allocation) register/spill info.
- ~120 opcodes organized by category: guards, constants, arithmetic, memory, allocations, barriers, conversions, calls.
- Constants are interned (de-duplicated) and grow downward from REF_BIAS; instructions grow upward.
- Every optimization pass (FOLD, FWD, NARROW, DCE, LOOP, SPLIT, SINK) operates on IR — it's the universal language.
What Is SSA and Why It Matters
SSA (Static Single Assignment) is a property of intermediate representations where each variable is assigned exactly once. In LuaJIT's IR, this means each value has a single definition point, and all uses refer back to that definition via IR references.
SSA vs Non-SSA
Non-SSA (normal variables): SSA (LuaJIT IR):
x = 1 [1] KINT 1
x = x + 2 ← x reassigned! [2] ADD [1], KINT 2
y = x * 3 [3] MUL [2], KINT 3
x = y - x ← x reassigned! [4] SUB [3], [2] ← uses [2], not "x"
[5] ADD [4], KINT 1
In non-SSA code, x is assigned twice. To optimize, the compiler must track which x is which. In SSA, each definition gets a unique reference ([1], [2], [3]...), and uses point directly to their definition. No ambiguity.
Why SSA Matters
- Simpler dataflow analysis: Each value has one definition → use-def chains are trivial
- Efficient CSE: If two instructions have the same opcode and operands, they're identical
- Dead code elimination: If no one uses a definition, it's dead
- Constant folding: If all operands are constants, the result is a constant
φ Functions in Loops
SSA has a problem with loops: if a variable is modified in a loop body, which definition do uses before the loop refer to? The solution is φ (phi) functions that merge values from different control-flow paths.
LuaJIT handles φ functions implicitly. The recorder tracks the current value of each stack slot in J->slot[], and when a loop back-edge is encountered, it knows which IR reference corresponds to the current value. No explicit φ nodes in the IR — the recorder manages the mapping.
The IRIns Structure — A 64-Bit Swiss Army Knife
The fundamental unit of LuaJIT's IR is IRIns — a 64-bit instruction that serves different purposes at different stages of compilation.
The Definition
typedef union IRIns {
struct { IRRef1 op1, op2; IROpT ot; IRRef1 prev; };
struct { IRRef2 op12; IRType1 t; IROp1 o; uint8_t r; uint8_t s; };
int32_t i; GCRef gcr; MRef ptr; TValue tv;
} IRIns;The same 64 bits are interpreted differently depending on context:
Before Register Allocation
┌──────────┬──────────┬──────────┬──────────┐
│ op1 │ op2 │ ot │ prev │
│ (16-bit) │ (16-bit) │ (16-bit) │ (16-bit) │
└──────────┴──────────┴──────────┴──────────┘
operand 1 operand 2 type+opcode CSE chain
op1,op2: references to operand instructions (16-bit each)ot: type (8 bits) + opcode (8 bits)prev: links the CSE skip-list chain for this opcode
After Register Allocation
┌──────────┬──────────┬──────────┬──────────┐
│ op1 │ op2 │ ot │ r │ s │
│ (16-bit) │ (16-bit) │ (16-bit) │ reg │spill│
└──────────┴──────────┴──────────┴──────────┘
operand 1 operand 2 type+opcode register/spill
r: the physical register assigned to this instruction's results: the spill slot (if the value was spilled to the stack)
The prev field is repurposed after allocation. Before allocation, it links the CSE chain. After allocation, it holds register/spill information. This is a space-saving trick — the CSE chain is no longer needed once optimization is complete.
The Packed Form
struct { IRRef2 op12; IRType1 t; IROp1 o; uint8_t r; uint8_t s; };For fast access, op1 and op2 can be read as a single 32-bit value (op12). This is used by the CSE search: two instructions are identical if their op12 and o match.
The Opcode Set — 120 Operations
LuaJIT's IR has approximately 120 opcodes, organized into categories. Each opcode is defined via the IRDEF() macro in src/lj_ir.h.
Guards — The Backbone of Speculation
LT GE LE GT EQ NE ABC RETF
Guards are speculative assertions. They check a condition and either continue or exit the trace. They're specially aligned so opposites can be computed via XOR: LT ^ 1 == GE, LT ^ 3 == GT, LT ^ 4 == ULT.
┌─────────────────────────────────────────────────────────────┐
│ Guard │ Checks │ Exit on │
├───────────┼──────────────────────┼──────────────────────────┤
│ LT │ left < right │ left >= right │
│ GE │ left >= right │ left < right │
│ EQ │ left == right │ left != right │
│ ABC │ array bounds check │ index out of bounds │
│ RETF │ return from frame │ frame mismatch │
└─────────────────────────────────────────────────────────────┘
Constants — Interned Values
KPRI KINT KGC KPTR KKPTR KNULL KNUM KINT64 KSLOT
Constants are interned — identical constants share the same IR reference. This enables constant CSE: if two instructions load the same constant, they share the same reference.
Arithmetic
ADD SUB MUL DIV MOD POW NEG ABS MIN MAX FPMATH
ADDOV SUBOV MULOV (overflow-checking variants)
The overflow-checking variants (ADDOV, SUBOV, MULOV) set the overflow flag on integer overflow. The optimizer can strip these checks when it proves overflow is impossible (narrowing).
Memory Operations
References: AREF HREF NEWREF UREFO UREFC FREF STRREF LREF
Loads: ALOAD HLOAD ULOAD FLOAD XLOAD SLOAD VLOAD
Stores: ASTORE HSTORE USTORE FSTORE XSTORE
The IRDELTA_L2S constant maps each load opcode to its corresponding store opcode. This is used by the FWD pass to match loads with their preceding stores.
Allocations
SNEW XSNEW TNEW TDUP CNEW CNEWI
These allocate new objects. They flow into the SINK pass, which defers allocations to exit paths when possible.
Barriers
TBAR OBAR XBAR
GC write barriers. TBAR for table stores, OBAR for object stores, XBAR for cross-page stores. These ensure the tri-color GC invariant is maintained.
Conversions
CONV TOBIT TOSTR STRTO
Type conversions. CONV is the general conversion with rich mode encoding in op2 (source type, target type, truncation mode).
Calls
CALLN CALLA CALLL CALLS CALLXS CARG
CALLN: normal C function callCALLA: call with argument adjustmentCALLL: tail callCALLS: slow call (with hook checking)CALLXS: cross-state callCARG: call argument
The Type System — From Bits to Semantics
Each IR instruction carries an 8-bit type field that drives optimization and code generation.
Type Categories
┌─────────────────────────────────────────────────────────────┐
│ Type │ Meaning │
├───────────────┼─────────────────────────────────────────────┤
│ IRT_NIL │ Nil value │
│ IRT_TRUE/FALSE │ Boolean values │
│ IRT_LIGHTUD │ Light userdata (32-bit pointer) │
│ IRT_STR │ String pointer │
│ IRT_P32 │ 32-bit pointer │
│ IRT_P64 │ 64-bit pointer │
│ IRT_INT │ Integer value │
│ IRT_NUM │ Double value │
│ IRT_I8/U8 │ 8-bit integer │
│ IRT_I16/U16 │ 16-bit integer │
│ IRT_U32 │ 32-bit unsigned integer │
│ IRT_I64/U64 │ 64-bit integer │
│ IRT_FLOAT │ 32-bit float │
│ IRT_SOFTFP │ Software float (split into 2x int32) │
└───────────────────────2─────────────────────────────────────┘
Type Flags
IRT_GUARD: This instruction is a guard. Its result type is the type being checked.IRT_ISPHI: This instruction represents a φ merge point.IRT_MARK: Temporary mark during optimization.
The Mode Table
The lj_ir_mode[] array encodes per-operand constraints:
enum {
IRMnone, // No operand
IRMref, // IR reference
IRMlit, // Literal value
IRMcst, // Constant reference
// Flags:
IRM_Comm // Commutative
IRM_A // Allocation
IRM_L // Load
IRM_S // Store
IRM_W // Non-weak guard
};This table drives the FOLD engine: it knows which operands can be constants, which operations are commutative, and which have side effects.
The Reference System — Constants and Instructions
LuaJIT's IR uses a clever reference numbering scheme that allows constants and instructions to share the same reference space.
REF_BIAS — The Pivot Point
┌─────────────────────────────────────────────────────────────┐
│ Reference Space │
│ │
│ 0x0000 ← Constants grow this way (downward) │
│ ... │
│ REF_BIAS - 2 ← Last constant │
│ REF_BIAS - 1 ← First constant │
│ REF_BIAS ← Pivot point (the "zero" of IR refs) │
│ REF_BIAS + 1 ← First instruction │
│ REF_BIAS + 2 ← Second instruction │
│ ... │
│ 0xFFFF ← Instructions grow this way (upward) │
└─────────────────────────────────────────────────────────────┘
- Constants:
REF_BIAS - idx(growing downward from REF_BIAS) - Instructions:
REF_BIAS + idx(growing upward from REF_BIAS)
This means constants and instructions never collide — they grow toward each other from the pivot point.
Constant Interning
When the recorder creates a constant, it first checks if an identical constant already exists. If so, it reuses the reference. This is implemented via a hash table (J->khash):
// Simplified constant interning
IRRef lj_ir_kint(jit_State *J, int32_t k) {
// Check if this integer constant already exists
IRRef ref = find_khash(J, IRT_INT, k);
if (ref) return ref; // Reuse existing constant
// Create new constant
return new_kint(J, k);
}Interning enables constant CSE: if two instructions load the same integer, they share the same reference, and the FOLD engine recognizes them as identical.
How the Recorder Emits IR
The trace recorder (lj_record_ins()) translates bytecode into IR. For each bytecode instruction, it:
- Reads the current stack slots from
J->slot[] - Emits IR via the
emitir()macro - Updates the slot map with the result reference
The emitir Macro
#define emitir(ot, a, b) (lj_ir_set(J, (ot), (a), (b)), lj_opt_fold(J))This does two things:
lj_ir_set(): creates a new IR instruction with the given type and operandslj_opt_fold(): immediately runs the FOLD engine on the new instruction
The immediate folding is key — it means constants are folded as soon as they're created, and algebraic simplifications happen during recording, not after.
Type Specialization in Action
-- Lua source
local x = 0
for i = 1, 100 do
x = x + i
endRecorded IR (simplified):
[1] KINT 0 ; x = 0 (initial value)
[2] KINT 1 ; i = 1 (loop start)
[3] KINT 100 ; loop limit
[4] ISNUM [2] ; guard: i is a number
[5] ISNUM [1] ; guard: x is a number
[6] ADD [1], [2] ; x + i (both known to be numbers)
[7] ADD [2], KINT 1 ; i + 1
[8] LE [7], [3] ; i <= 100?
[9] PHI [6], [5] ; x = (x+i) or 0 (loop merge)
[10] PHI [7], [2] ; i = (i+1) or 1 (loop merge)
The guards at [4] and [5] specialize the types. After them, the ADD at [6] knows both operands are numbers and can use a single addsd instruction.
The Optimization Pipeline — Transforming IR
After recording, the IR passes through a series of optimization passes. Each pass transforms the IR in place.
The Pipeline
┌──────────────────────────────────────────┐
│ Recorded IR │
└──────────────────┬───────────────────────┘
│
┌──────────────────▼───────────────────────┐
│ FOLD (during recording) │
│ Constant folding, algebraic simplification│
│ ABC elimination, CSE │
└──────────────────┬───────────────────────┘
│
┌──────────────────▼───────────────────────┐
│ DCE (pre-LOOP) │
│ Dead code elimination │
└──────────────────┬───────────────────────┘
│
┌──────────────────▼───────────────────────┐
│ LOOP │
│ Loop-invariant code motion │
│ Copy-substitution unrolling │
└──────────────────┬───────────────────────┘
│
┌──────────────────▼───────────────────────┐
│ NARROW │
│ Double → int32 narrowing │
│ Overflow check stripping │
└──────────────────┬───────────────────────┘
│
┌──────────────────▼───────────────────────┐
│ FWD + DSE │
│ Load forwarding (L2L, S2L) │
│ Dead store elimination │
└──────────────────┬───────────────────────┘
│
┌──────────────────▼───────────────────────┐
│ SPLIT (soft-float only) │
│ 64-bit → 32-bit splitting │
└──────────────────┬───────────────────────┘
│
┌──────────────────▼───────────────────────┐
│ SINK │
│ Allocation sinking │
│ Defer stores to exit paths │
└──────────────────┬───────────────────────┘
│
┌──────────────────▼───────────────────────┐
│ Optimized IR │
└──────────────────────────────────────────┘
FOLD — The Heart of Optimization
The FOLD engine runs on every emitted instruction. It uses a semi-perfect hash table for pattern matching:
- Build a 24-bit key from
(ins_opcode, left_opcode, right_opcode) - Look up the key in the generated
fold_hash[]table - If no match, mask with wildcards and retry:
ins left right→ins any right→ins left any→ins any any - Execute the fold function (constant fold, simplify, CSE, etc.)
This is a compile-time metaprogramming technique: the LJFOLD macros in the source are parsed by a Lua script to generate the optimal lookup table.
NARROW — Predictive Narrowing
The NARROW pass keeps numbers as doubles, narrowing to int32 only when beneficial:
- Induction variables: loop counters that are provably integers
- Index expressions: array indices that fit in int32
- Overflow stripping:
ADDOV → ADDwhen inputs are already integers
It uses a backpropagation cache (BPropEntry bpropcache[BPROP_SLOTS]) to propagate narrowing demands backward through the IR.
LOOP — Loop Optimization via Copy-Substitution
Instead of traditional LICM (which fails for dynamic languages due to guard control-dependencies), LuaJIT uses copy-substitution unrolling:
- Emit a
LOOPinstruction separating pre-roll from loop body - Re-emit all recorded instructions with substituted operands
- The pre-roll honors control dependencies for BOTH itself and the loop body
- PHI elimination: collect potential PHIs during substitution, eliminate redundant ones
If loop optimization fails (type instability, guard failure), it undoes changes and continues recording — a unique "loop unrolling via recording" recovery.
From IR to Machine Code — The Assembler
The final stage turns optimized IR into machine code.
The Assembly Process
void lj_asm_trace(jit_State *J, GCtrace *T) {
// Reserve MCode area (RW)
MCode *mcarea = lj_mcode_reserve(J, &lim);
// Process instructions in REVERSE order (last to first)
for (as->curins--; as->curins > as->stopins; as->curins--) {
IRIns *ir = IR(as->curins);
if (!ra_used(ir) && !ir_sideeff(ir)) continue; // DCE
if (irt_isguard(ir->t)) asm_snap_prep(as); // Prepare snapshot
asm_ir(as, ir); // Emit the instruction
}
// Emit head (trace entry) and tail (exit stubs)
// Commit MCode (RW → RX)
lj_mcode_commit(J, mctop);
}Key Points
- Backward assembly: Instructions are processed last-to-first. This enables the register allocator to know which registers are live at each point.
- Linear scan allocation: Registers are allocated with hints (e.g.,
CALL*results →RID_RET, x86 shift counts →RID_ECX). - Exit stubs: Each guard gets an exit stub that saves state and jumps to
lj_vm_exit_handler. - Snapshot preparation: Before emitting a guard, the assembler records which IR refs map to which stack slots (for deoptimization).
IR → x86-64 Mapping Example
IR: x86-64:
[1] KINT 42 mov eax, 42
[2] ADD [1], KINT 1 add eax, 1
[3] ISNUM [2] test eax, 0x7ff00000
jnz .exit_guard_1
[4] MUL [2], KINT 2 lea eax, [rax+rax] ; strength reduction
[5] RET ret
The assembler applies its own optimizations: strength reduction (MUL(x,2) → LEA(x+x)), register coalescing, and memory operand fusion.
Frequently Asked Questions
Why SSA?
SSA simplifies compiler analysis. With single definition points, use-def chains are trivial to compute, CSE is a simple hash lookup, and dead code elimination is straightforward. The cost — φ functions for control-flow merges — is handled implicitly by LuaJIT's recorder.
How does LuaJIT handle φ functions?
Implicitly. The recorder tracks the current IR reference for each stack slot in J->slot[]. When a loop back-edge is encountered, it knows which reference corresponds to the current value. No explicit φ nodes in the IR — the mapping is managed by the recorder.
Can IR be inspected at runtime?
Yes. Run LuaJIT with the -jdump flag: luajit -jdump=bitmsx your_script.lua. This dumps the IR for each compiled trace, showing the opcodes, types, and snapshots. It's an invaluable tool for understanding what the JIT is doing.
Why are constants interned?
Deduplication. If two instructions load the same constant, they share the same IR reference. This enables constant CSE (identical instructions are merged) and reduces trace size. The hash table lookup is O(1) per constant creation.
What's the difference between ADD and ADDOV?
ADD is a plain integer add (wraps on overflow). ADDOV checks for integer overflow and exits the trace on overflow. The NARROW pass can strip the overflow check (ADDOV → ADD) when it proves the inputs are small enough that overflow is impossible.
Sources
- Mike Pall, LuaJIT source code (
src/lj_ir.h,src/lj_ir.c,src/lj_record.c,src/lj_opt_*.c,src/lj_asm.c), LuaJIT GitHub - Mike Pall, "LuaJIT 2.1 IR documentation", luajit.org
- Compiler literature: SSA form (Cytron et al.), semi-perfect hash tables
